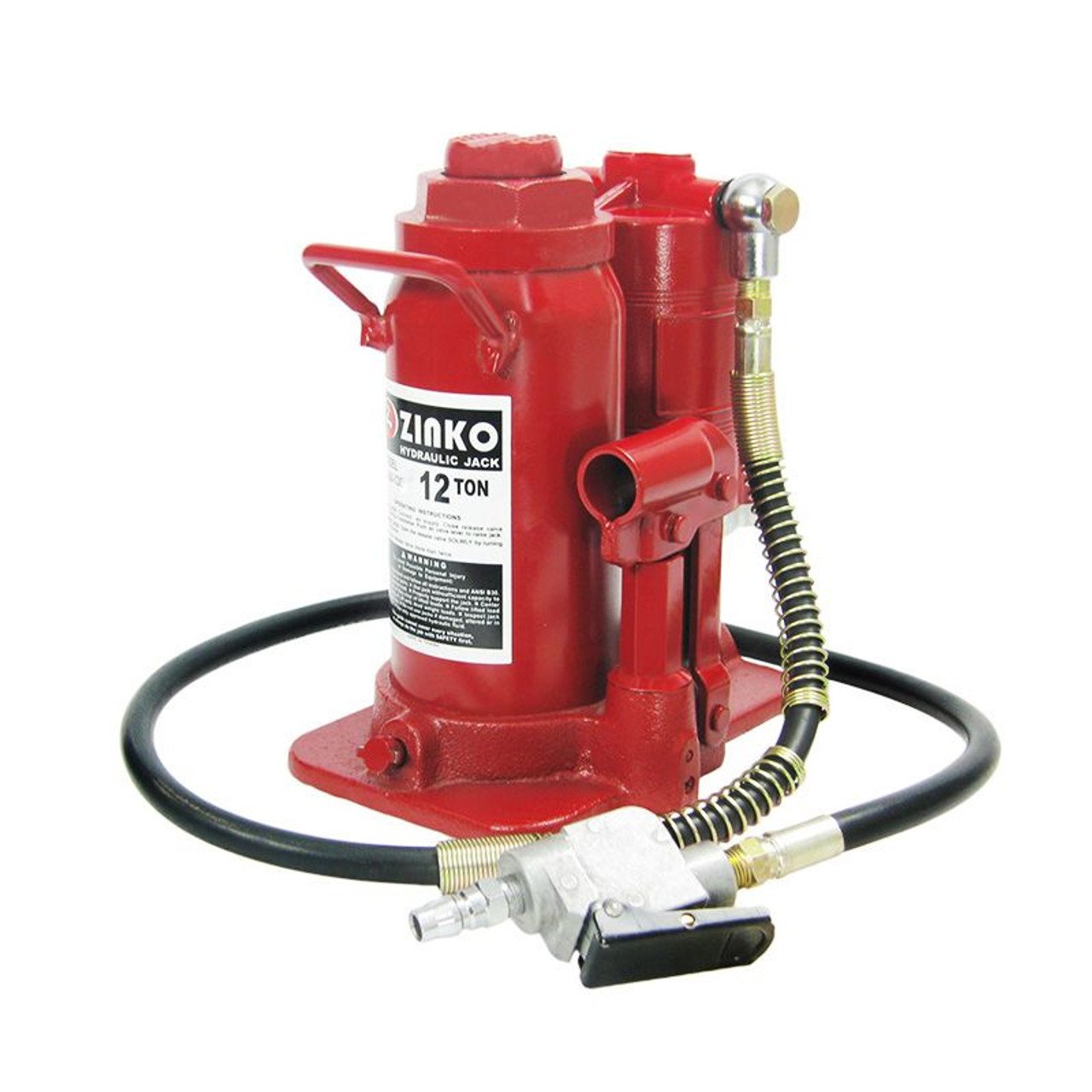

Zinko ZABJ-12C3 12ton Air Manual Bottle Jack

Air Hydraulic Bottle Jack – 12 ton, cast iron base. Turn ordinary manual bottle jack power into air-hydraulic power. When connected to your shop’s air lines, these versatile jacks can safely deliver lifting power with the push of a button, for lifting of heavy cars, trucks and other applications.

Special Features:

Operates both manually and pneumatically
Fast and efficient air pump saves lifting time; built-in safety valve to prevent overload
Heat treated extension screw and release valve adds extra strength and life span
Extremely strong and well designed swivel head bolt with 360° movement to prevent hose binding
Spring coil protectors on both ends to prevent punctures
Rust preventive coating on ram and extension screw
Convenient push button flap type air operation valve
Durable ductile iron base with 3 piece zinc plated handle
Properly placed welded carrying handle for easy transport
More Information
Capacity (Tons) :12
Lift Time by Air Supply – No Load :40
Lift Time by Air Supply – Load :125
Air Pressure Range (psi) :40-140
Minimum Height (in) :9.69
Ram Lift (in) :5.88
Screw Extension (in) :3.13
Maximum Heights (in) :18.69
Weight (lbs) :29.000000
