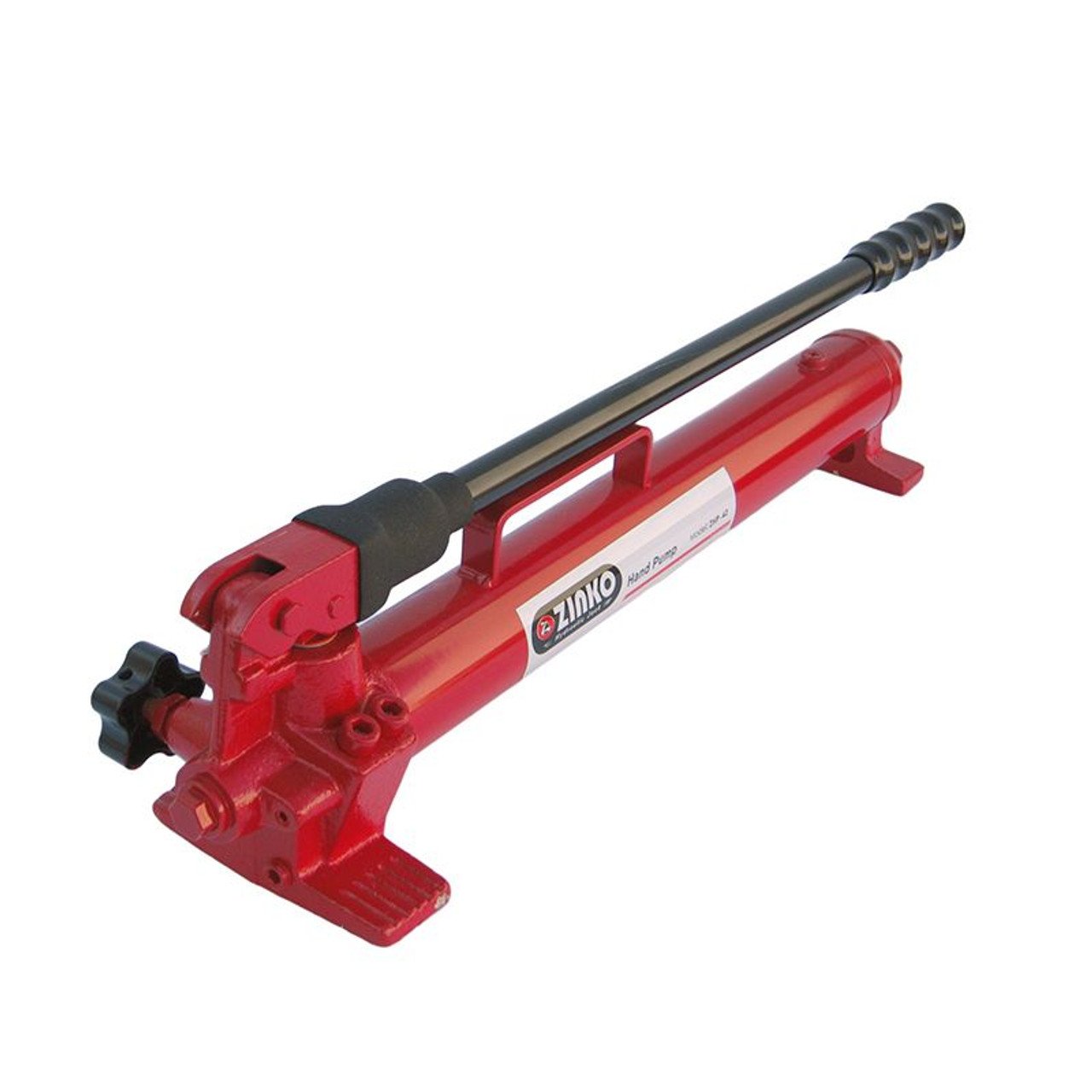

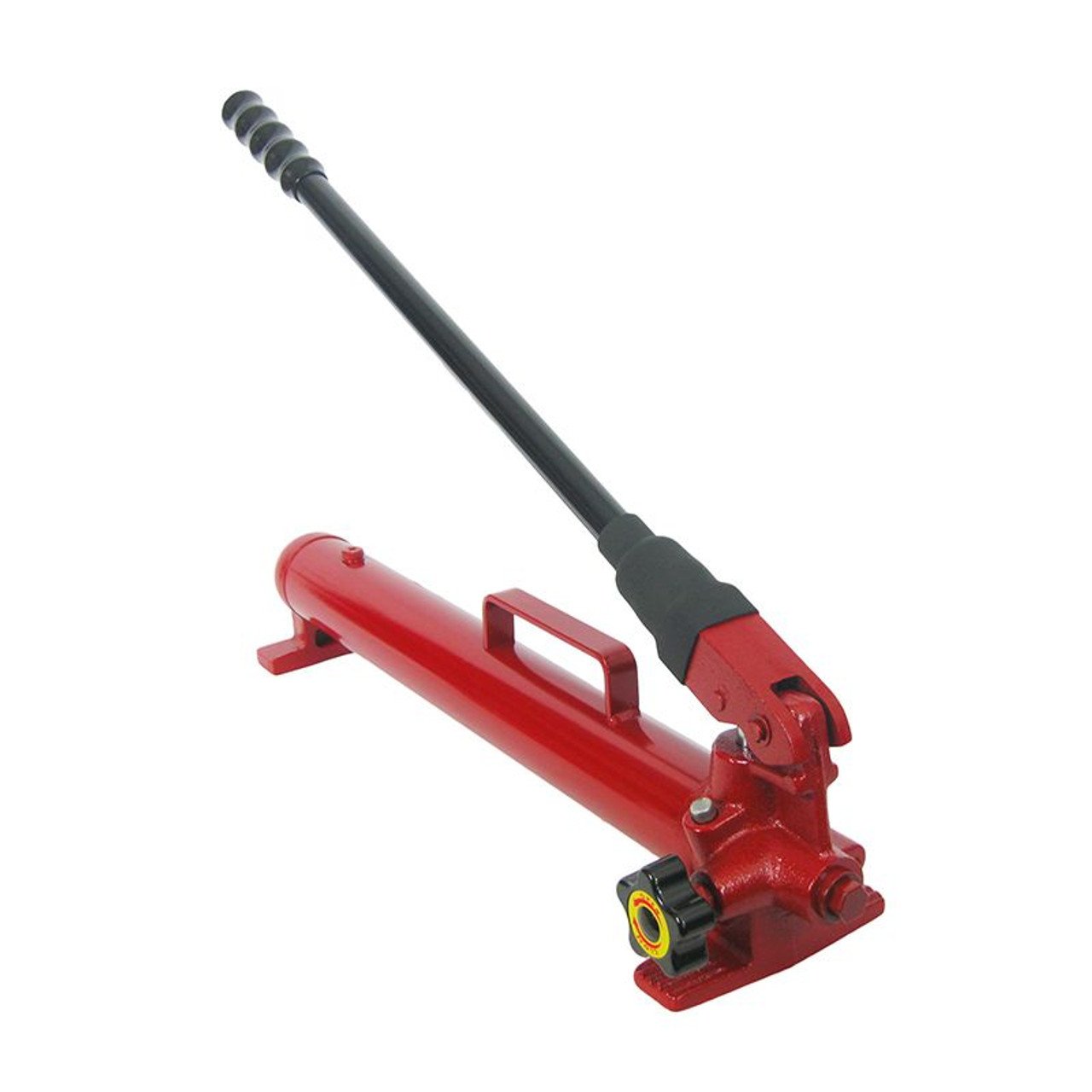

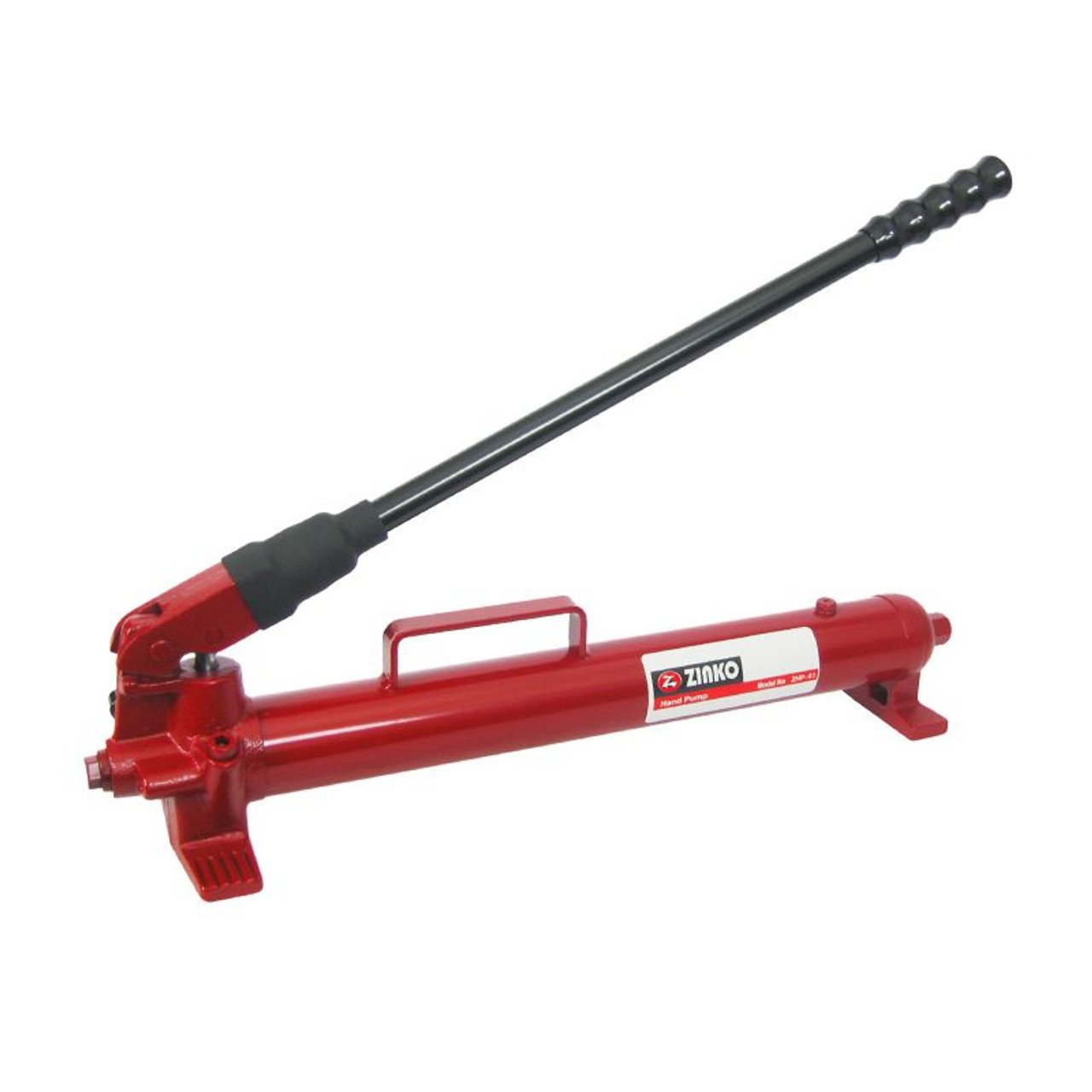

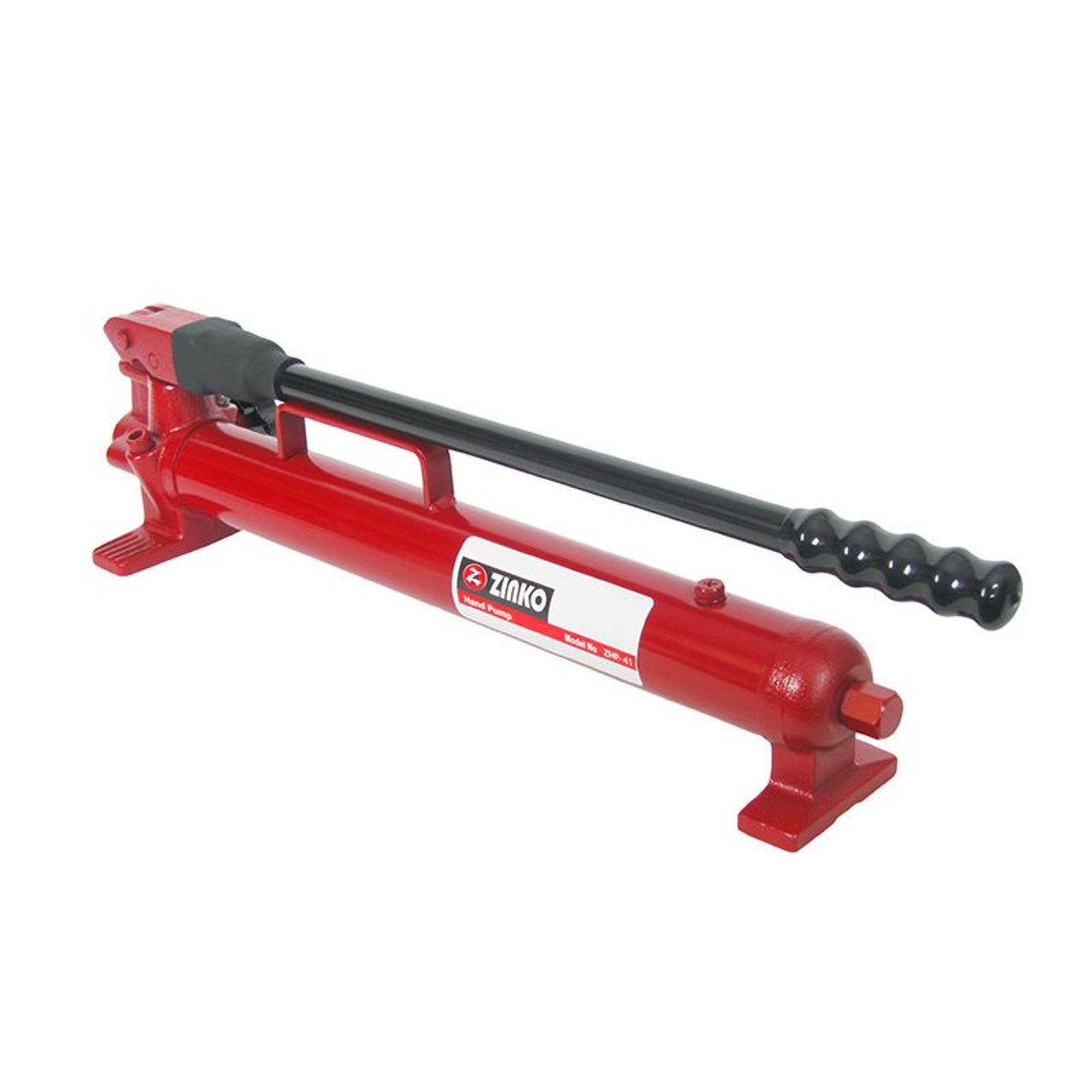

Zinko Zhp-41 40 Cubicinches Single Speed Hand Pump

Overview

Zinko ZHP-41 42 Cubic Inches Single Speed Hand Pump- Designed to be used in many different fields with a vast selection of hydraulic components. Industrial quality, general purpose hand pump. Designed for use in shop, agricultural, automotive/truck service, and construction maintenance. Single speed operation; external adjustable relief valve for application flexibility.

Special Features:

Works with a wide variety of rams including short, push, spreader and snap-set types.
Extremely portable, great for on site use.
Chrome-plated piston rods for long pump life.
Polyurethane seals allow greater cycle counts reducing service requirements.
Easy to mount design.
Works with “quick-connect” couplers for fast set up.
Heavy duty return springs provide consistent performance

More Information

Speed :1
Port Size (NPT) :3/8″
Usable Oil Capacity (in³) :42
Pressure Rating – 1st Stage (psi) :—
Pressure Rating – 2nd Stage (psi) :10000
Oil Displacement Per Stroke – 1st Stage (in³) :—
Oil Displacement Per Stroke – 2nd Stage (in³) :0.19
Max Handle Effort (lbs) :98
Piston Stroke (in) :0.50
Weight (lbs) :19.000000
