Specifications:
• Minimum Height: 15 inches
• Maximum Height: 48 inches
• Overall maximum height with towers attached: 108 inches (9 ft.)
• Tower Height: 60 inches plus (height extensions included)
• Tower Length: 52 inches (4.3 ft.)
• Tower Height with Extension: 90 inches
• Rack Length: (w/o tower & ramps): 18 ft.
• Rack Length (w/tower & ramps): 24.4 ft.
• Rack Width (w/o ramps): 46 inches
• Rack Width (w/ramps): 82 inches
• Ramp Width: 17.75 inches
• Weight of Rack: 3000lbs.
• Maximum Lift Capacity: 10,500 lbs.
• Power required: 110v single phase 25-30 amp dedicated service
• Minimum Compressed Air: 110 psi
• Maximum Compressed Air: 145 psi
• Hydraulics for Lift: TITANIUM Electric Hydraulic System
• Hydraulics for Towers: SPX Power Team 10 ton foot pump
• Hydraulics for Towers: TITANIUM 10 ton 10 inch stroke ram
• Tower Pulling Force: 10 Ton
• 360 Degree Pulling Capacity: Yes
• Above Ground or In Ground Installation: Yes
• Designed for In Ground Pit Installation

Package includes:

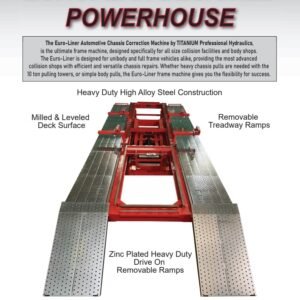

• TITANIUM Euro-Liner 18 ft. Bench Rack
• TITANIUM electric hydraulic system, control cabinet including hand pendant (for raise & lower)
• (2) SPX Power Team 10 Ton foot pumps (for towers)
• (2) Ten ton towers loaded with TITANIUM 10 ton 10 inch rams
• (2) Grade 100 high alloy pull chains w/forged slip hooks
• (10) Floor anchor bolts
• (5) Down pull assemblies
• (2) Removable zinc coated drive on ramps
• (4) Heavy duty forged pinch weld clamp assemblies
• (4) Truck anchor clamps
• (2) Pillar jacks w/mounting adapters
