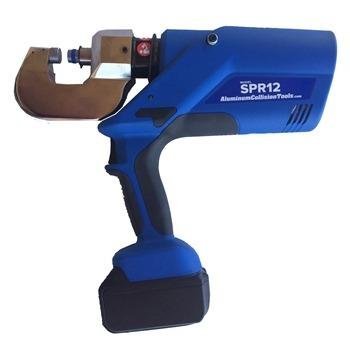

SPR-12 Aluminum Self-Piercing Rivet Gun – Version 2

The SPR-12 (V2) Aluminum Self-Piercing Rivet Gun is a professional cordless 18V tool designed specifically for installing self-piercing rivets on aluminum alloy vehicle bodies. This lightweight and portable hydraulic rivet gun delivers consistent high force for strong, factory-correct joints without heat or pre-drilling. Micro-computer control monitors pressure and automatically retracts the ram after each rivet for safe and efficient operation. Ideal for high-volume collision and auto body shops working on modern aluminum-intensive vehicles.

Key Features & Compatibility:

• Rivet Gun Designed Specifically for work on aluminum alloy vehicle bodies
• Cordless 18V Technology is Safe and easy-to-handle
• High-quality lithium-ion battery to power the high-pressure hydraulics
• Efficient, Light weight and portable.
• Micro-computer control system monitors pressure
• Automatically retracts the ram after the rivet installed.
• Adjustable Output Pressure. 4,400 to 11,200 Force pounds (20-50KN adjustable)
• Manual reset button halts the forward movement
• Automatically retracts it to starting position.
• 360-degree rotating arms, for easy access the hard-difficult spots.

Kit Includes the Following Items:

• (1) “C” Yoke 1 1/2 ” (35 X 55 mm)
• (1) Lithium-ion Battery (PRR-12)
• (1) 18V Battery Charger 110V wall plug (36-PRR-22)
• (1) Handy Strap
• (1) Heavy duty blow molded case
• (1) Case includes multiple rivet storage placement slots
• Gun Weight 10.8 lbs. with battery and small “C” yoke
• One Year MFG Warranty

Total of 18 Punches and Dies as described below.

• 36-PRR-10 – 5mm Male Rivet Removal Die
• 36-PRR-11 – 5mm Female Rivet Removal Die
• 36-PRR-12 – 3mm Male Rivet Removal Die
• 36-PRR-13 – 3mm Female Rivet Removal Die
• 36-PRR-14 – Flush Finish Self Piercing Rivet Die X2
• 36-PRR-15 – Solid Rivet Forming Die
• 36-PRR-16 – 3mm Self Piercing Rivet Die
• 36-PRR-17 – 3mm Rivet Forming Die
• 36-SA-0400 – 5mm, Self-Piercing Rivet Die
• 36-SA-0401 – 5mm Forming Die
• 36-SA-0402 – 5mm Forming Die
• GAT-SPR-399-5MM – 5mm Punch Die for SPR-12, PR-5 & ESR800
• GAT-FFD-FF10 – Head flow form side die
• GAT-FFD-FF11 – Forming side flow form die
• GAT-36CPD-C10 – Flow form punch calibration die (Includes 10 punch rings)
• GAT-SPR-040 – 1/2″ Solid Rivet Die
• GAT-SPR-041 –  1/4″ Solid Rivet Die
• This Part# 36065 – is an 18 Piece Punch and Die Kit (SPR-12)

Shipping Note: Free Ground Shipping. Shipping Includes High Value Freight Insurance, Against loss and / or damage while in transit. Expedited shipping not allowed due to battery.

Downloads: Cross-Reference, Packing list

For More Information and to get started with Certifications Visit Certify My Shop.

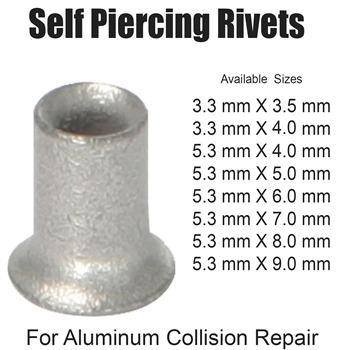

Rivets Sold Separately – see photos for more information and repair FORD, GM, BMW, Jaguar, Tesla and many more.
