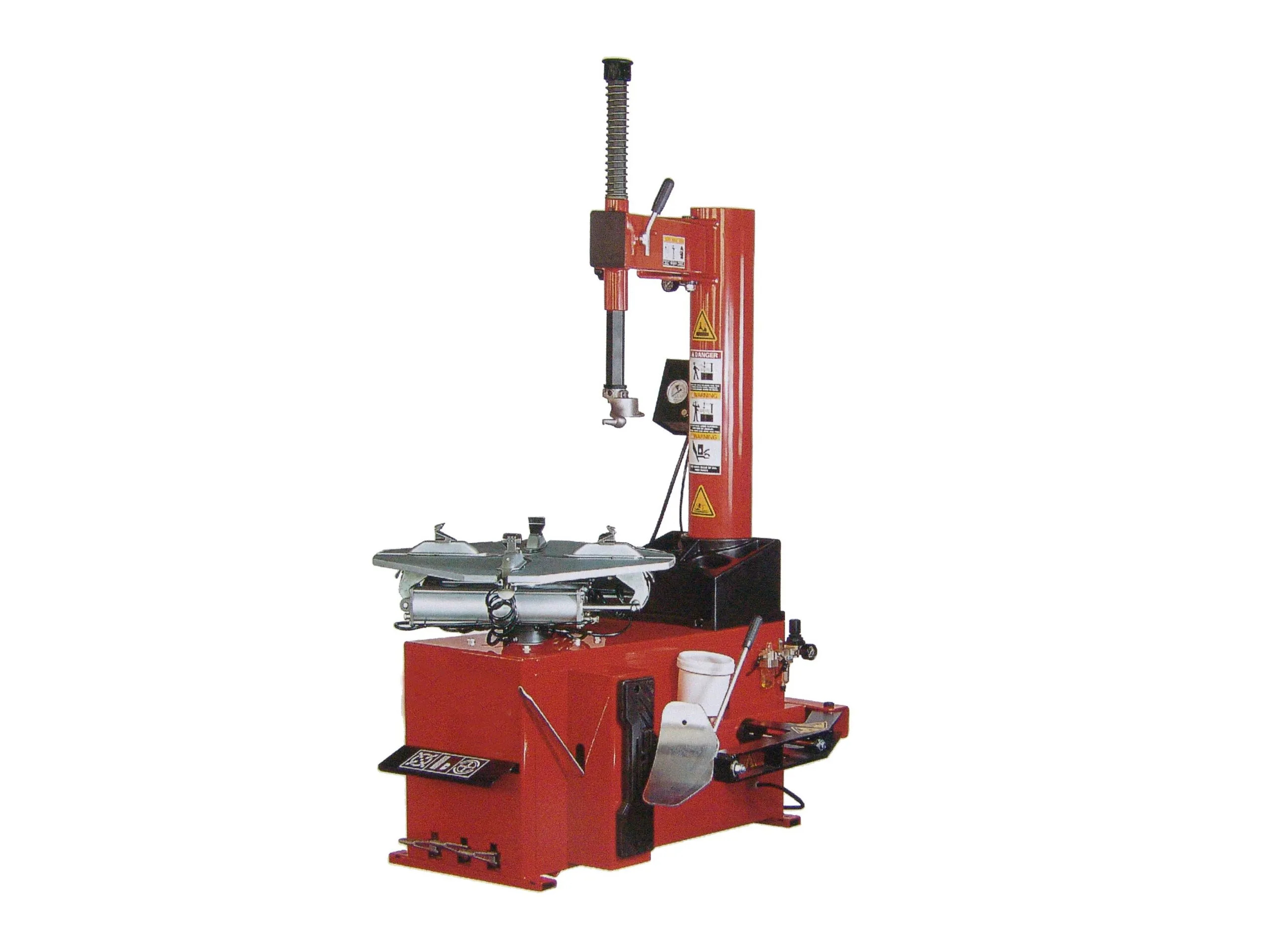

TIRE CHANGER TC-950
Roll over image to zoom in
Tire Changer

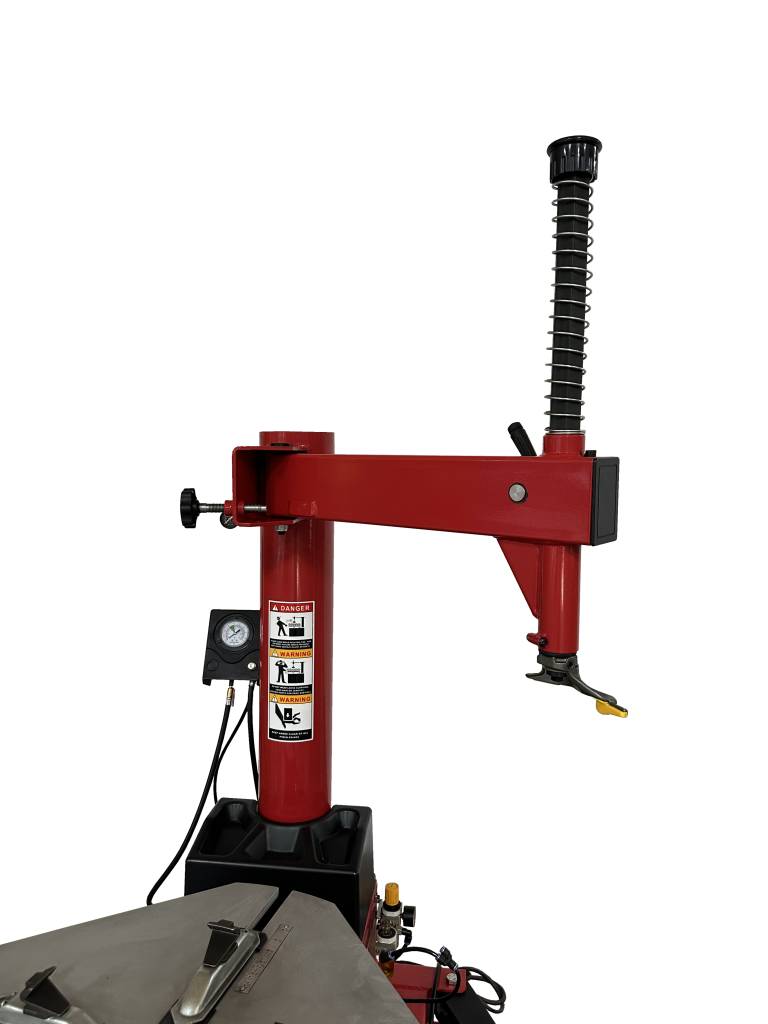

- Swing arm design
- Handles tires to 47” diameter and rim widths to 15”
- Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation
- Twin clamping cylinders provide more power to hold the most difficult rims
- Conveniently located and powerful bead breaker
- No scratching. Machine never contacts rim eliminating accidental damage
- Large diameter hex mount / demount shaft for extra rigidityPressure limiter, water separator and oiler are standard
TC-950
Specifications
| Tire Changer Model | TC-950 |
| Max Wheel Diameter | 47” |
| Wheel Width | 3” – 15” |
| Inside – Rim Clamp Range | 15” – 28” |
| Outside – Rim Clamp Range | 13” – 24” |
| Power | 110V – 15 Amp – 1PH |
| Working Pressure | 125 psi |
| Ship Weight | 640 lbs |
