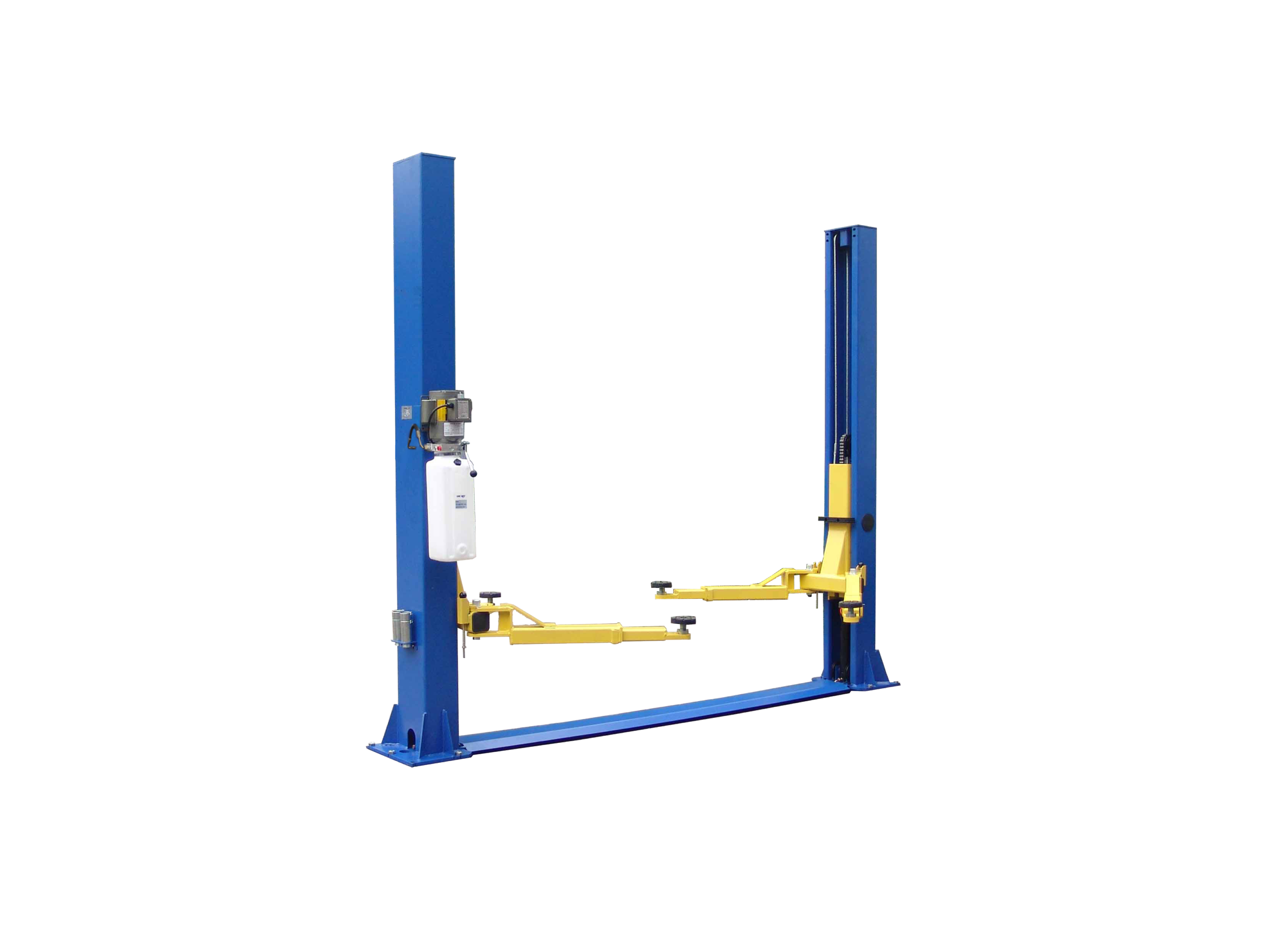

TWO POST FLOOR PLATE TP9KFX
Roll over image to zoom in
$3,095.00$3,825.00 (-19%)
The Two Post Floor Plate TP9KFX is a dependable vehicle lift designed for maintenance, repair, and inspection work. Its floor plate layout provides practical installation flexibility for many workshop spaces.
Product Highlights
- 9,000 lbs class lifting capacity
- Two post floor plate design
- Ideal for maintenance and repair tasks
- Suitable for lower ceiling areas
- Smooth lifting performance
- Durable steel construction
- Reliable workshop operation
Specifications
| Lift Model | TP9KFX |
| Capacity | 9,000 lbs. |
| Height Overall | 111-7/8″ |
| Width Overall w/ Power Unit | 134-58″ |
| Max Lift Height | 72″ |
| Width Between Columns | 110-3/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 101″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach – min/max | 31″-45″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,270 lbs |
| Power | 220V – 20 AMP – 1 PH |
