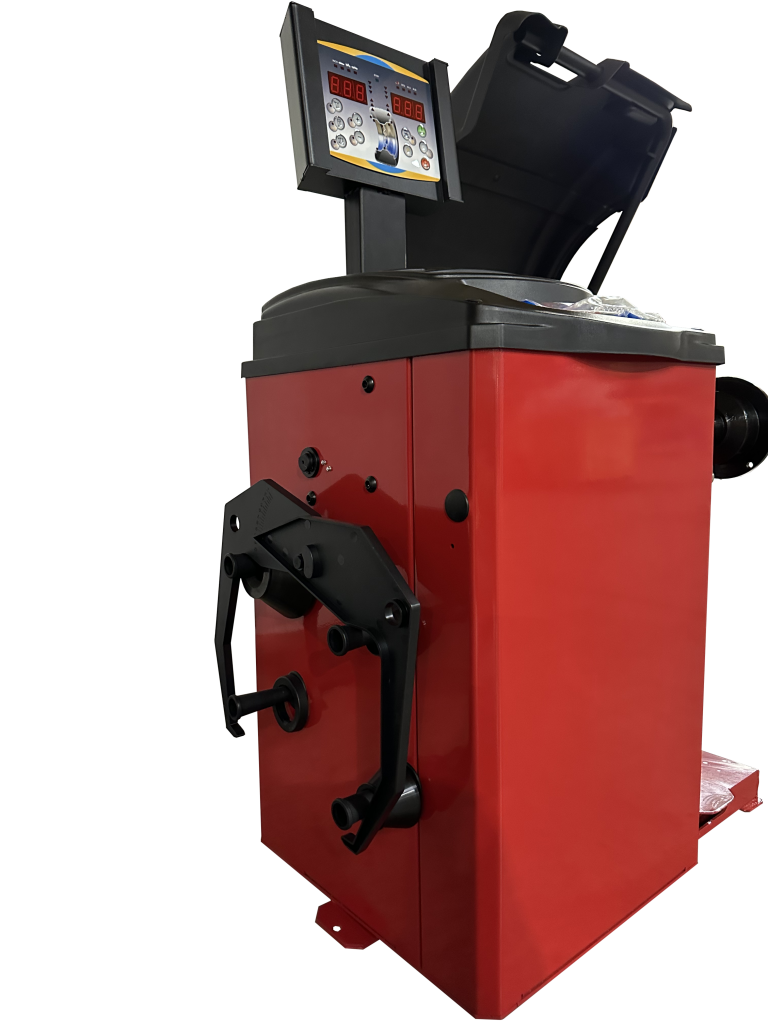

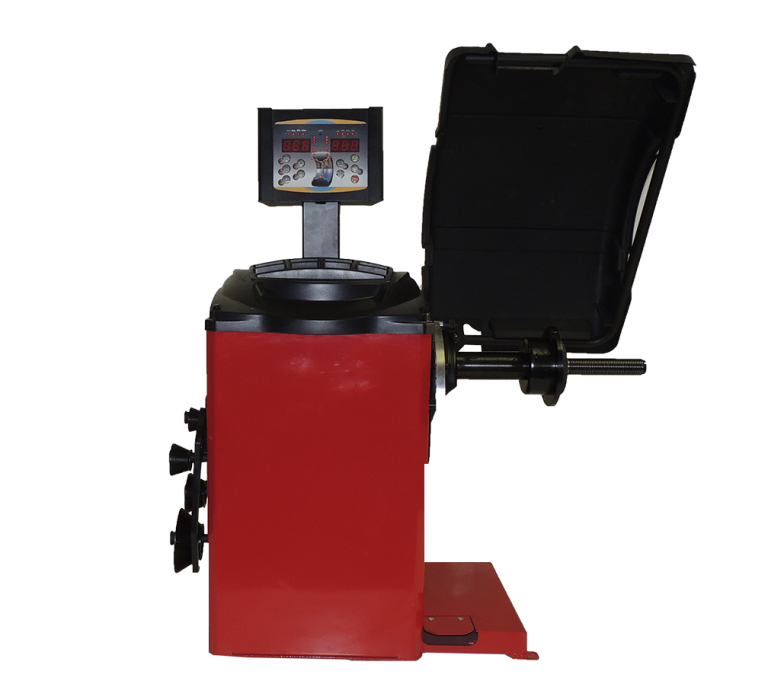

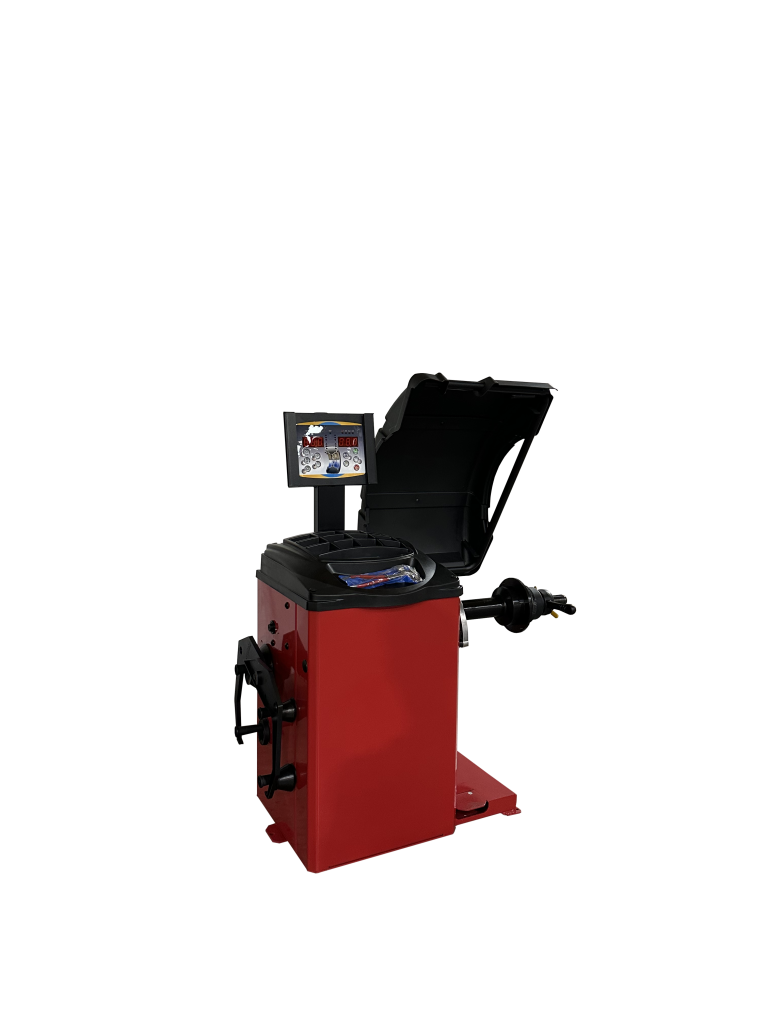

WHEEL BALANCER WB-CB66-VE
Roll over image to zoom in

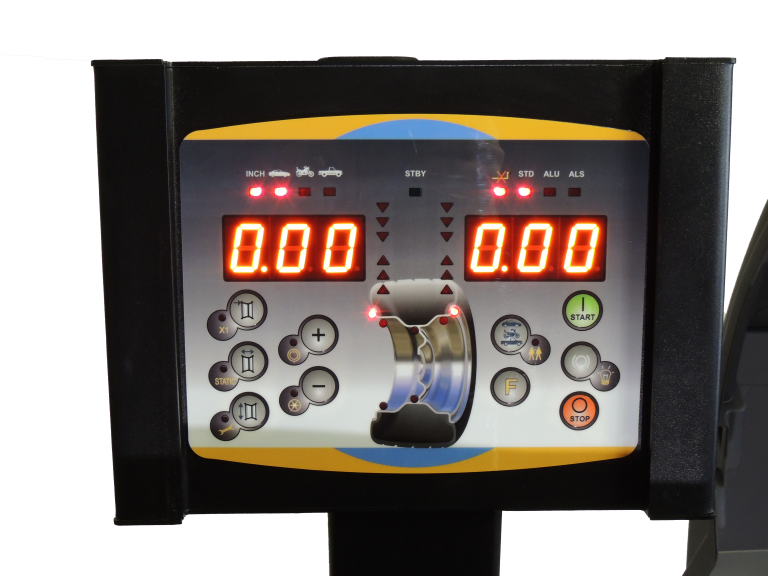

- 1. User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
- Large Rim Diameter Balancing – able to balance up to 28” Rim diameter & 44” overall Wheel Diameter.
- Multi-Mode Vehicle Balancing – standard with SUV, Car & Motorcycle balancing modes.
- Low-RPM Operation – at 140 RPM, the balancer’s life is further extended for sensitive electronics & moving components, all while providing highly accurate wheel balancing.
- Ease-Of-Use – with manual measurement input for distance & diameter with 5 ALU Standard modes and 2 ALU Smart modes.
- Exclusive Laser Indicator – lights up automatically at the unbalance weight position under ALUS mode in the 6 o’clock wheel position.
- Integrated Measurement Acquisition Wand – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
- Light Indicator – illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.

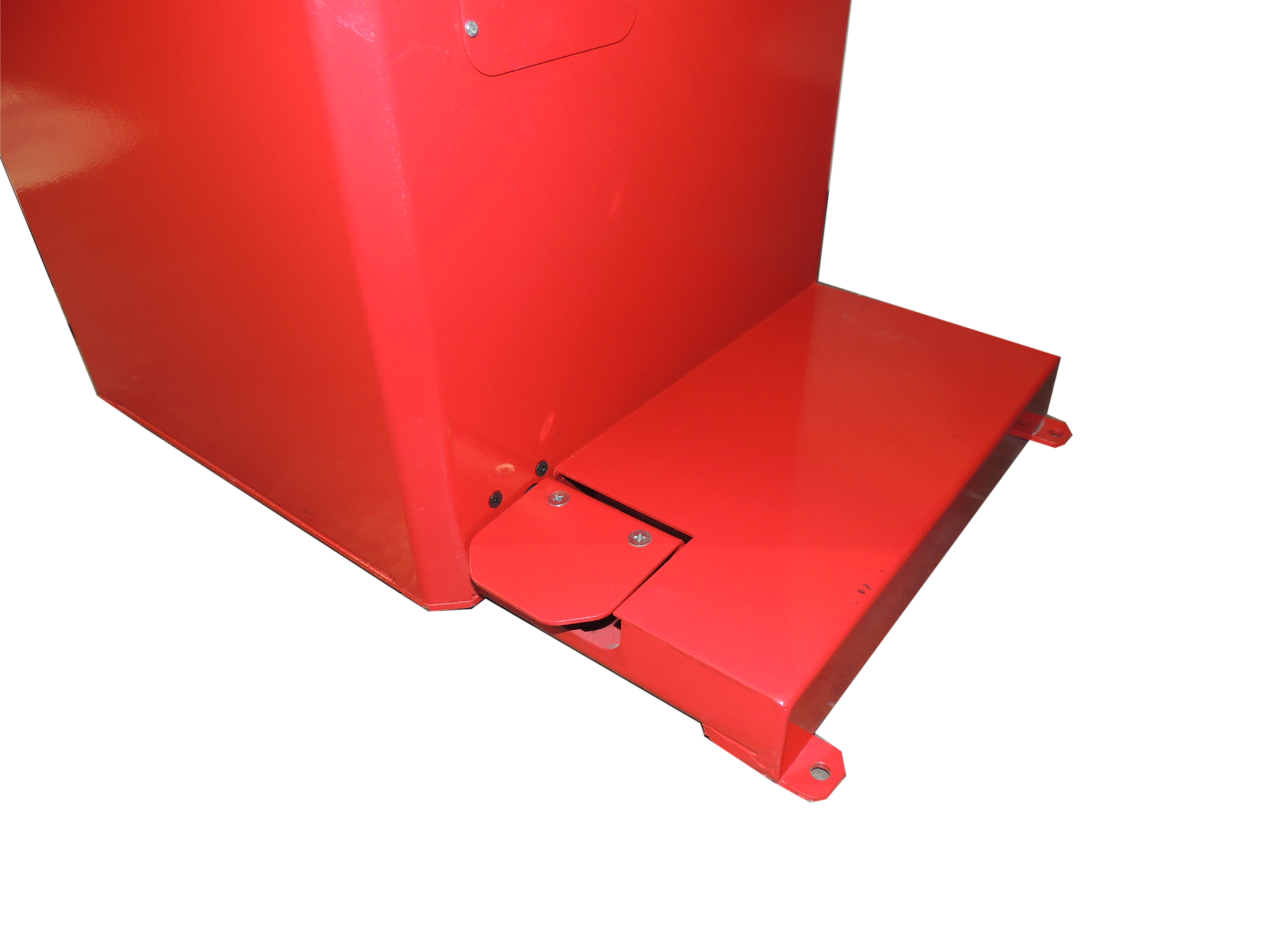

- Foot Pedal Braking System – conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.

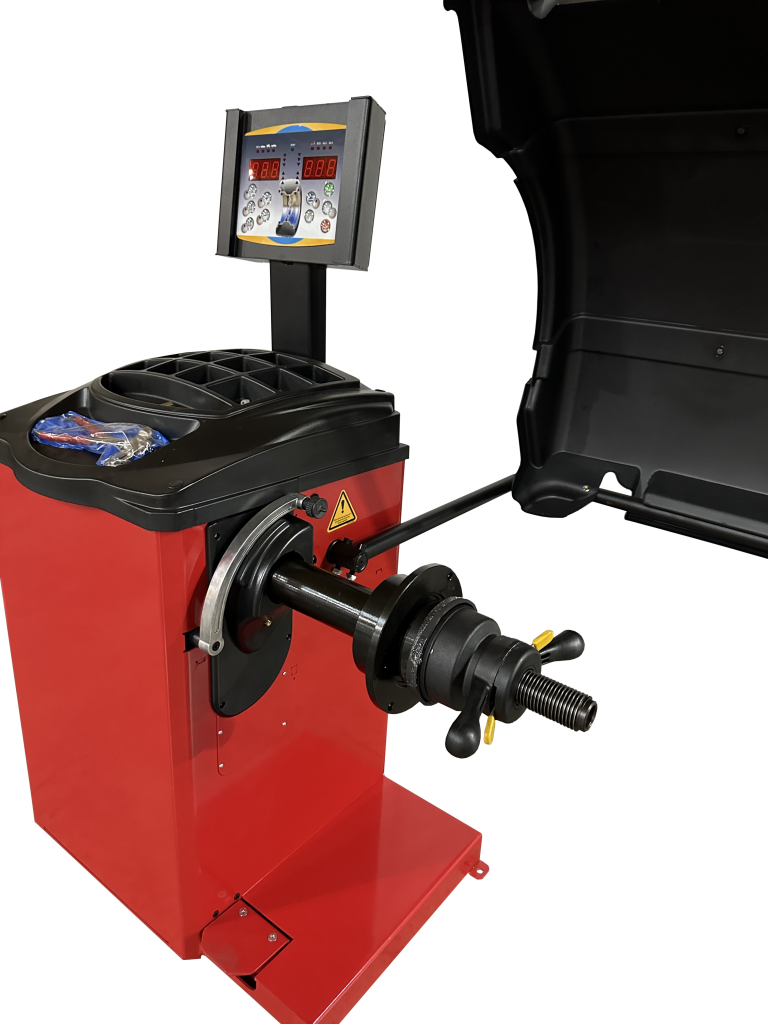

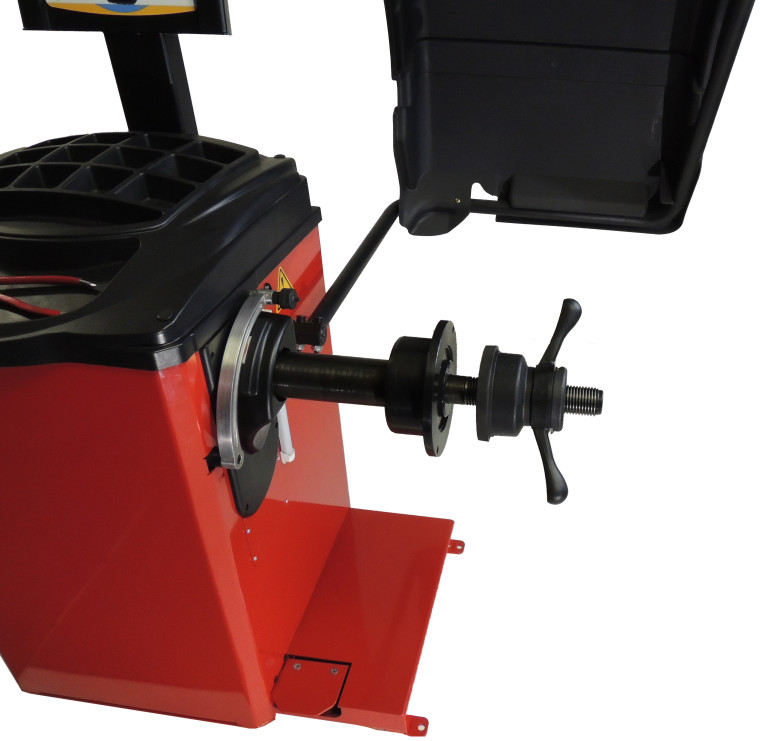

- Extra Long, Heavy Duty Balancing Shaft – the 12″ long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes & shapes.

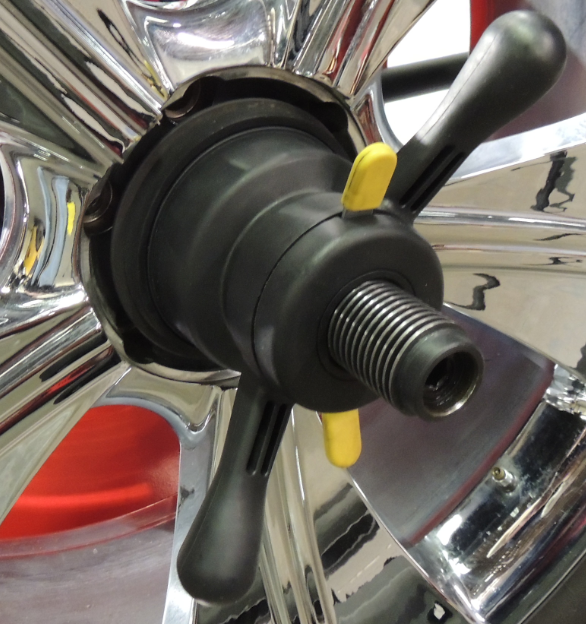

- Speed-Nut Mounting – the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
- Multi Pocket Wheel Weight Shelf – 14 articulated pockets, over 1.5″ deep, allowing plenty of storage for weights & tooling.

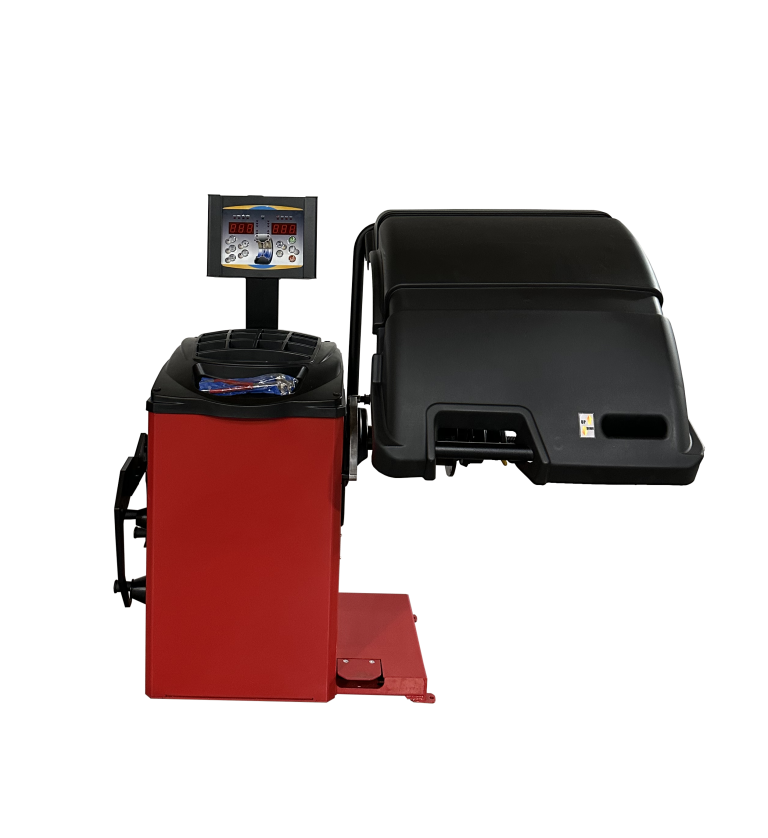

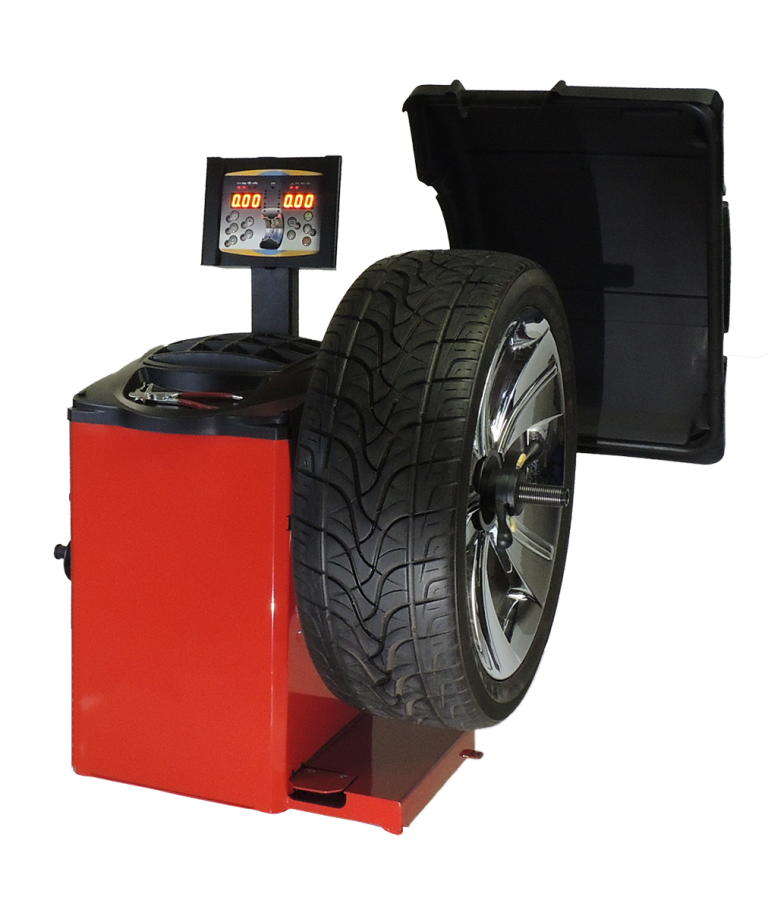

- Large Wheel Shroud – the large 38” wheel hood prevents debris from flying off the tire while in use.
- Power Saving Mode – automatically puts machine in stand-by mode after 5 minutes of non-usage.
WB-CB66-VE
Specifications
| Wheel Balancer Model | WB-CB66-VE |
| Data Entry | Keypad |
| Max Wheel Diameter | 44″ |
| Rim Width | 1.5″ – 20″ |
| Rim Diameter | 10″ – 28″ |
| Wheel Weight Capacity | 150 lbs |
| Accuracy | 1 gram |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 352 lbs |
