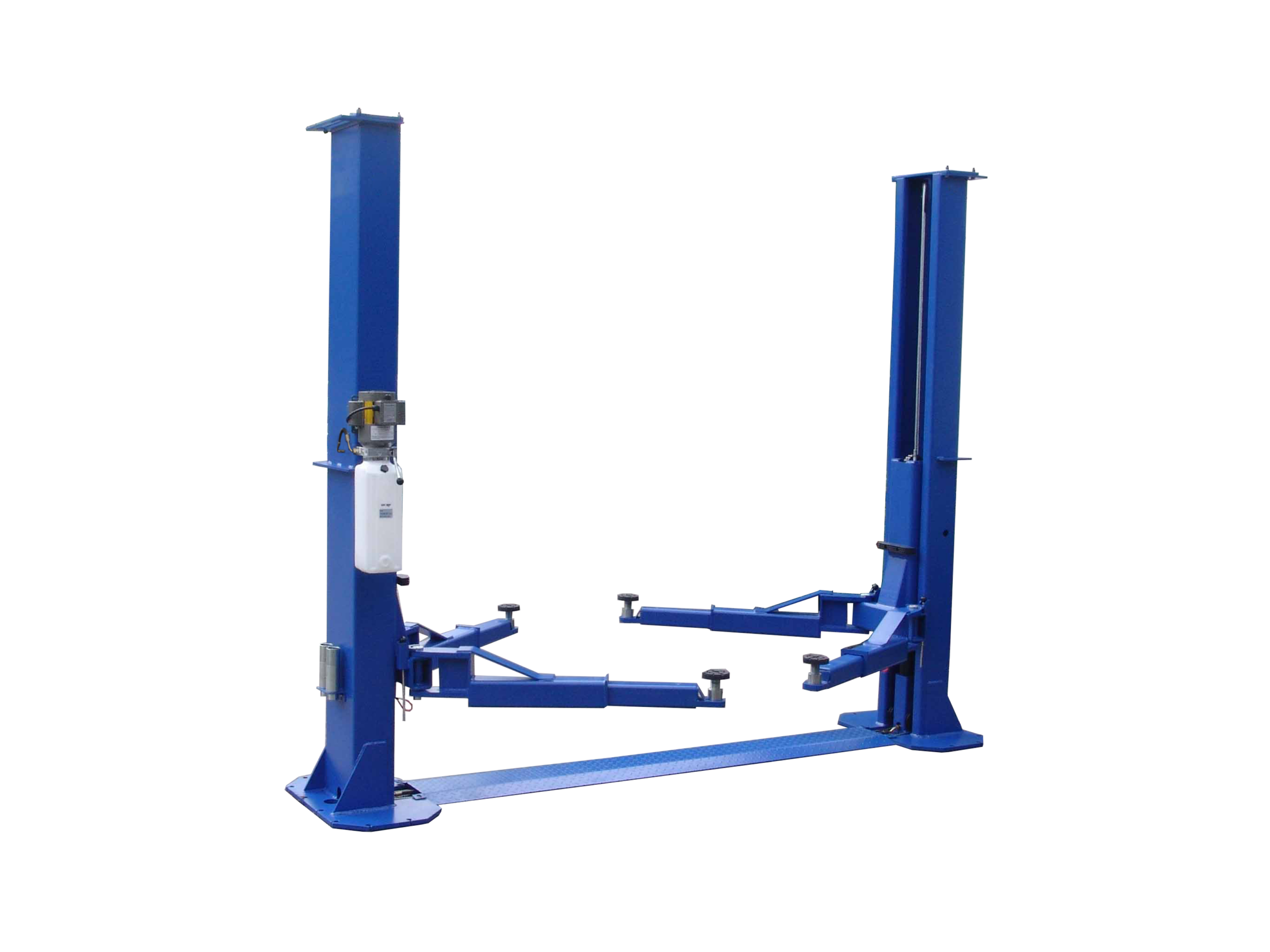

TWO POST FLOOR PLATE TP12KFX
Roll over image to zoom in
$6,995.00$8,244.00 (-15%)
The Two Post Floor Plate TP12KFX is a heavy-duty lifting solution built for handling larger vehicles in demanding service environments. Its floor plate design is ideal where overhead clearance is limited.
Product Highlights
- 12,000 lbs class lifting capacity
- Two post floor plate design
- Suitable for larger vehicles
- Ideal for lower ceiling garages
- Strong lifting performance
- Durable commercial construction
- Reliable professional use
TP12KFX
12,000 lbs Capacity
Specifications
| Lift Model | TP12KFX |
| Capacity | 12,000 lbs. |
| Height Overall | 121-1/2″ |
| Width Overall w/ Power Unit | 147-7/8″ |
| Max Lift Height | 76-1/2″ |
| Width Between Columns | 120-5/16″ |
| Min. Pad Height | 5″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 45S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach – min/max | 37″ – 52-1/2″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs. |
| Ship Weight | 2,460 lbs |
| Power | 220V – 20 AMP – 1 PH |
